- Robust and reliable PTO shaft
- 6 spline and round ends for fit
- Adjustable length 39"-55"
- Easy assembly and safer use
- Wide application for machinery
Description
Garvee 1-3/8" PTO Drive Shaft, 6 Spline Tractor End / Round Implement End, Adjustable 39"-55" for Rotary Cutter & Brush Hog
Benefits
- CE-certified Series 4 driveline
- 20CrMnTi carburized steel joint
- 39"–55" adjustable telescoping length
- Safety shield + security chain

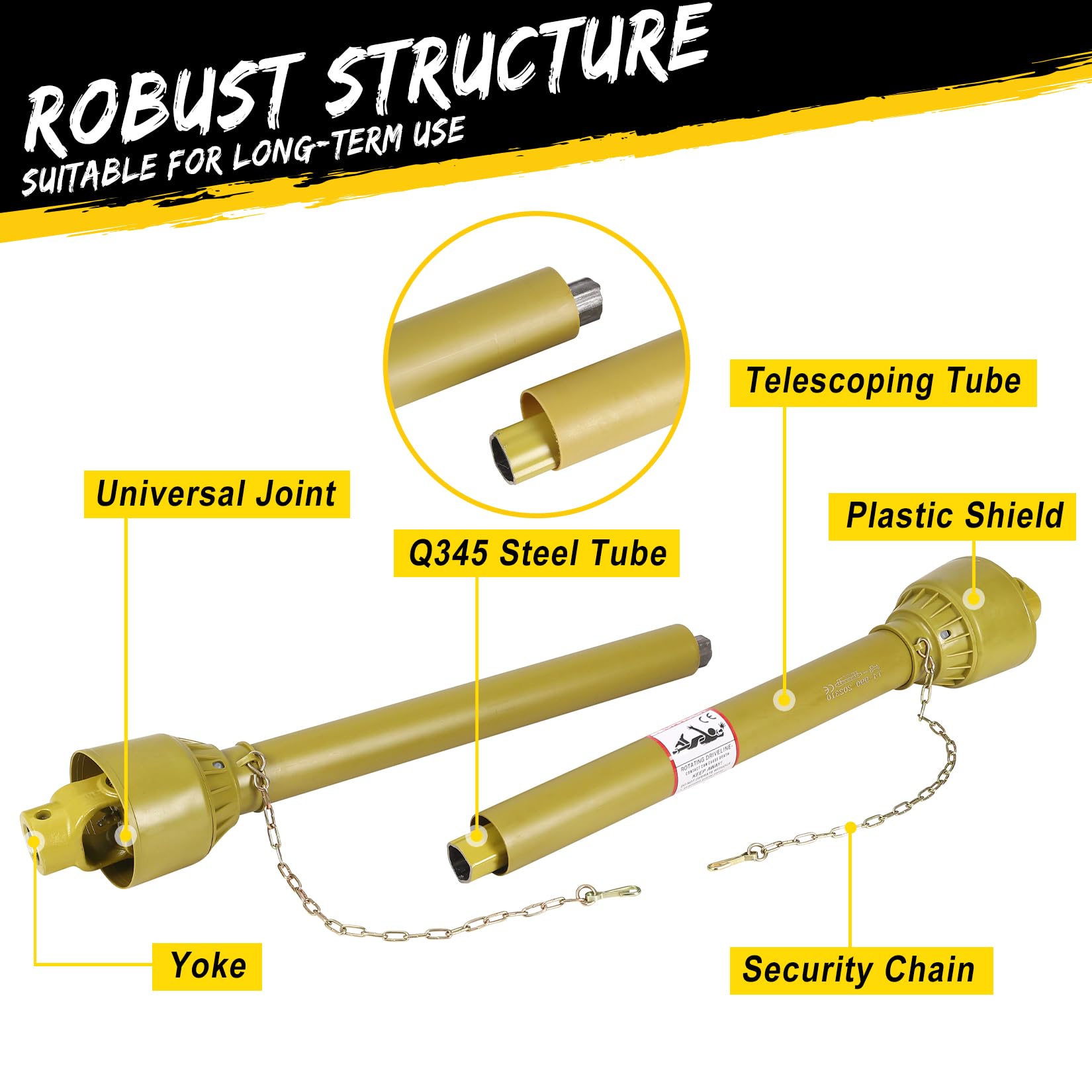

Robust and Reliable Construction
Robust and Reliable Construction

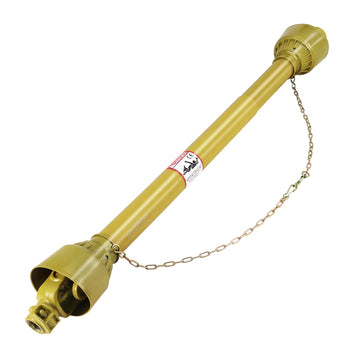

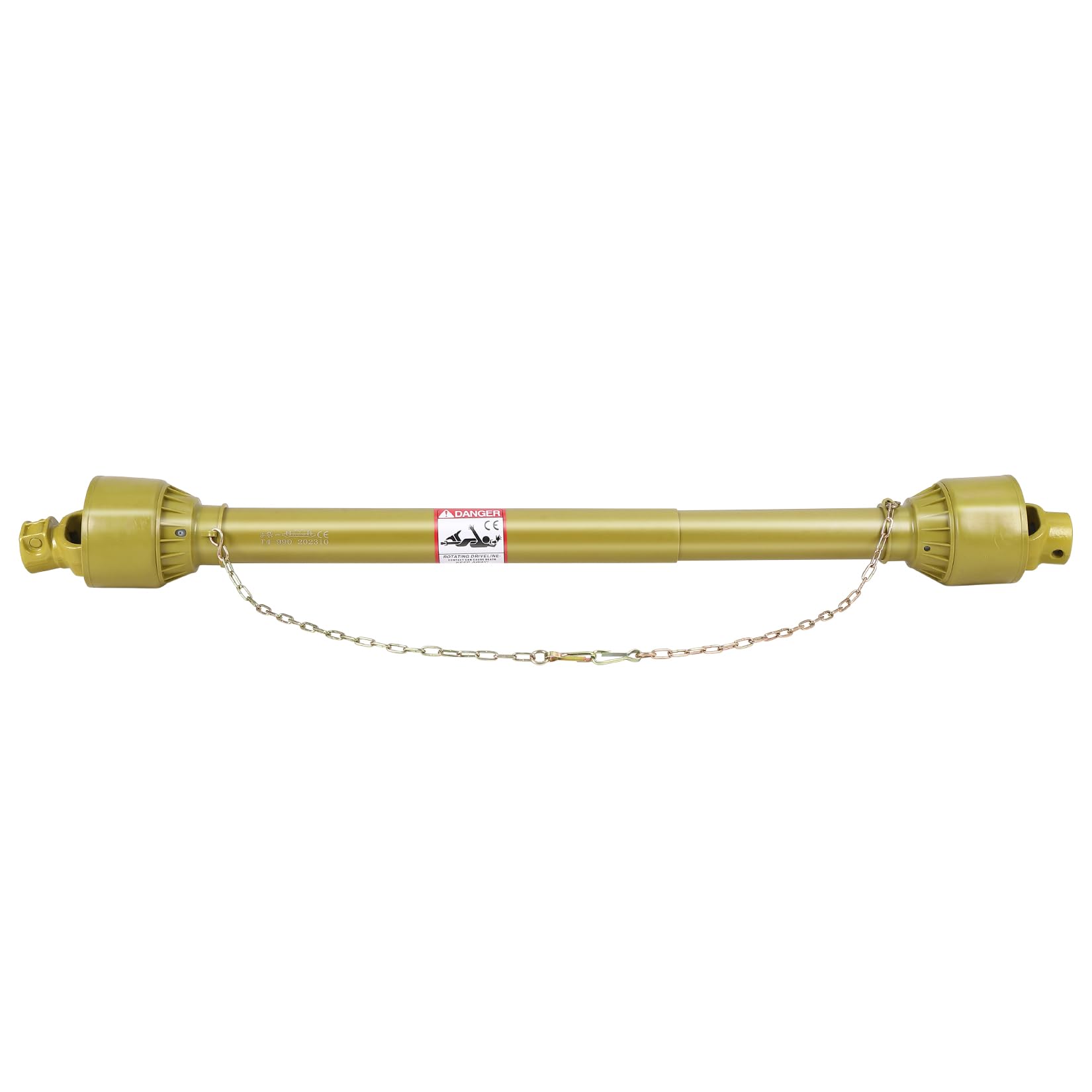

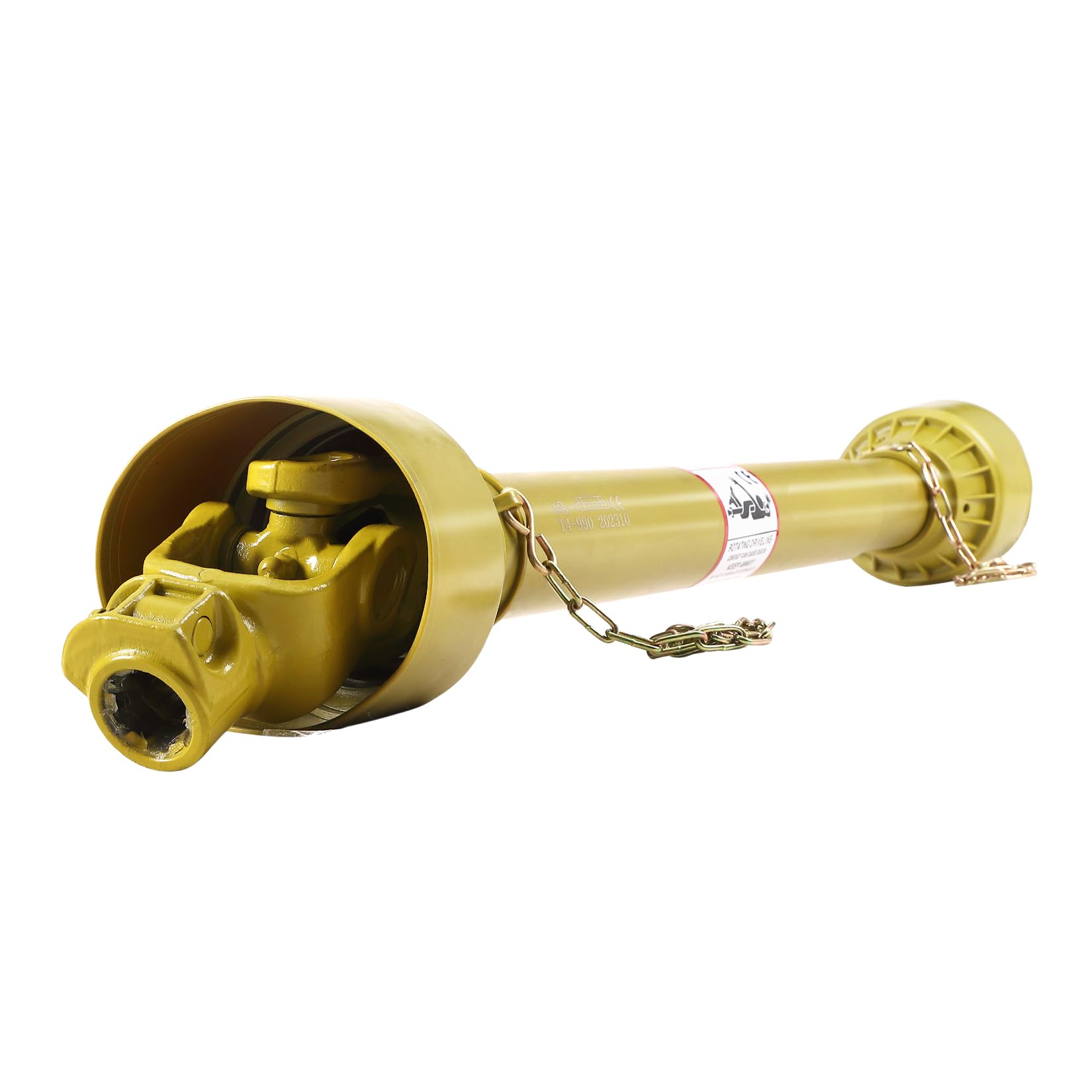

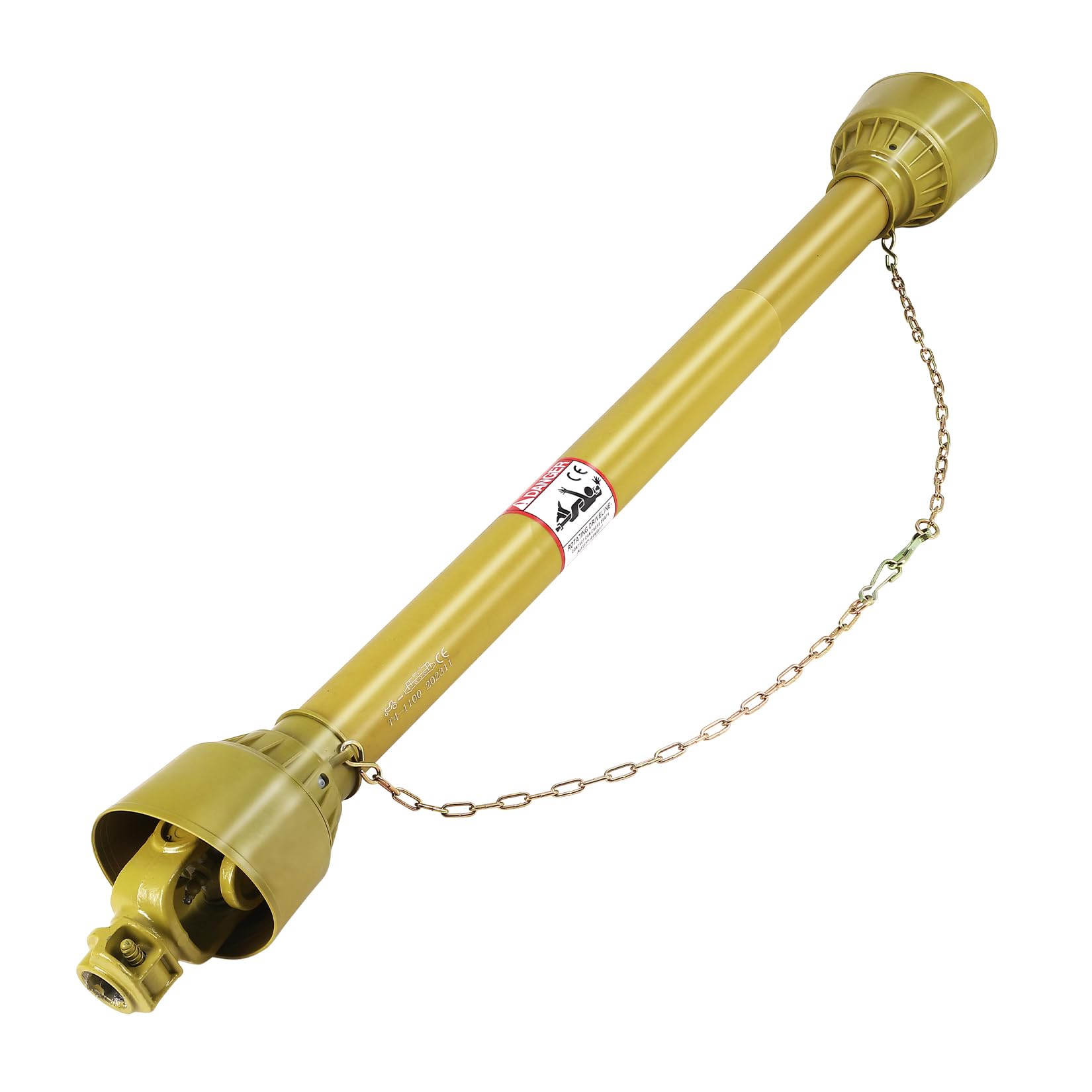

This PTO shaft is a well-engineered Series 4 driveline shaft with CE certification, featuring a solid 20CrMnTi carburized steel universal joint and a Q345 steel tube within the shield.[reference:0] Designed for compatibility with various agricultural machinery, this durable shaft ensures reliable performance in demanding applications, from rotary cutters to heavy-duty brush hogs.
6-Spline & Round Ends Versatile Design
6-Spline & Round Ends Versatile Design

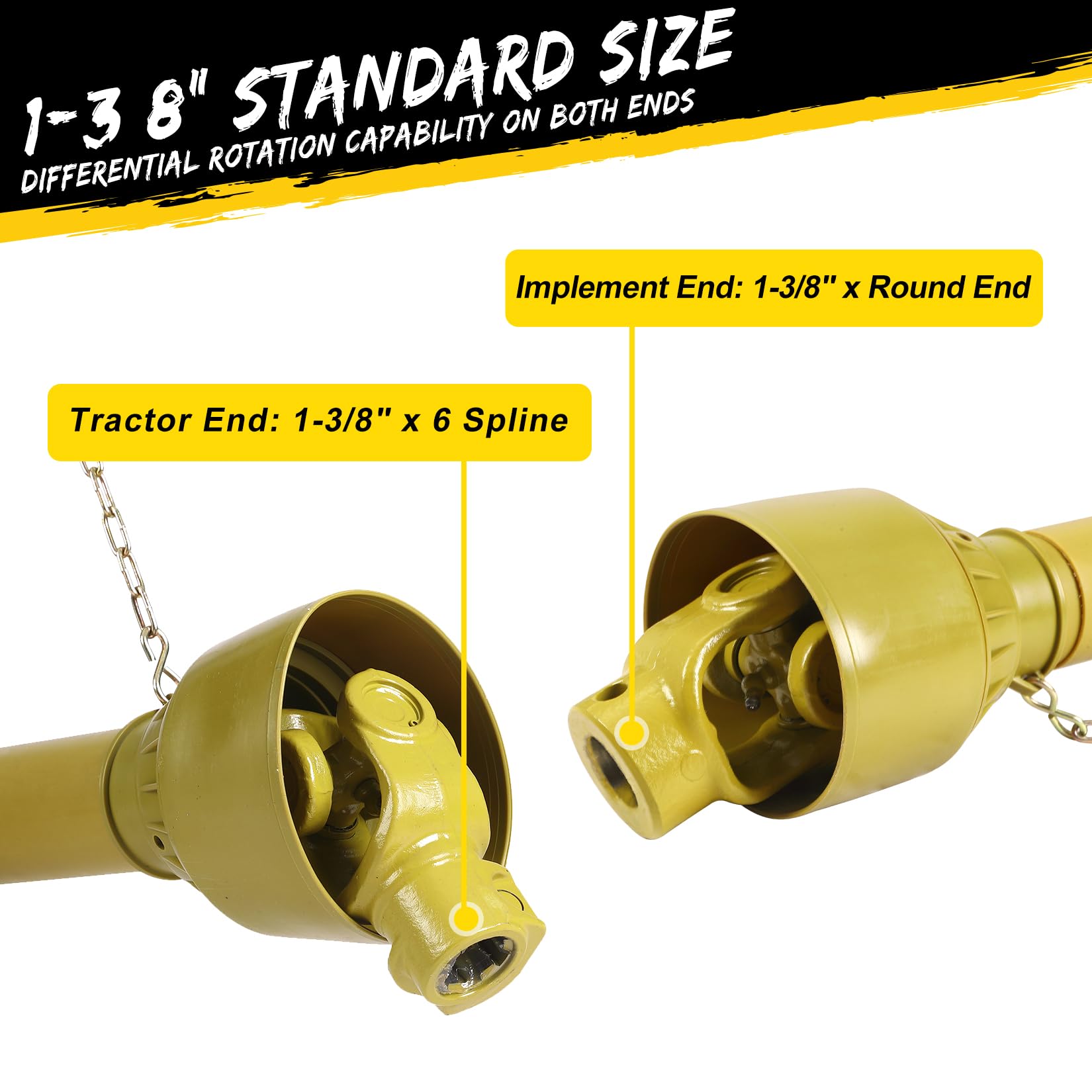

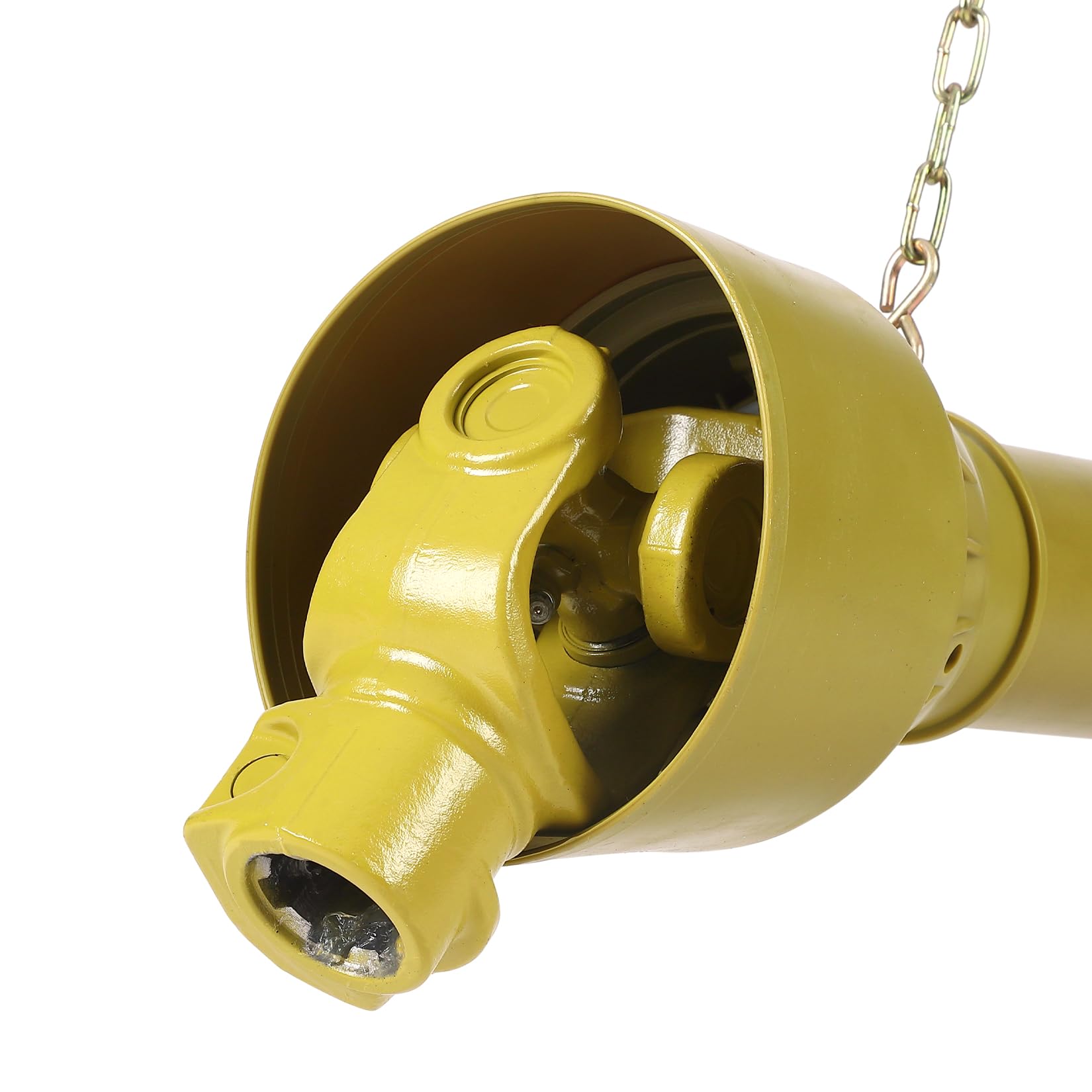

With a 6-spline tractor end and a round implement end, both standardized at 1-3/8 inches, this brush PTO shaft provides a seamless fit with matching implements and tractors.[reference:1] This versatile design delivers exceptional driving force to your machinery, enhancing efficiency and performance across a wide range of applications.
Adjustable Length & Speed Options
Adjustable Length & Flexible Speed Options

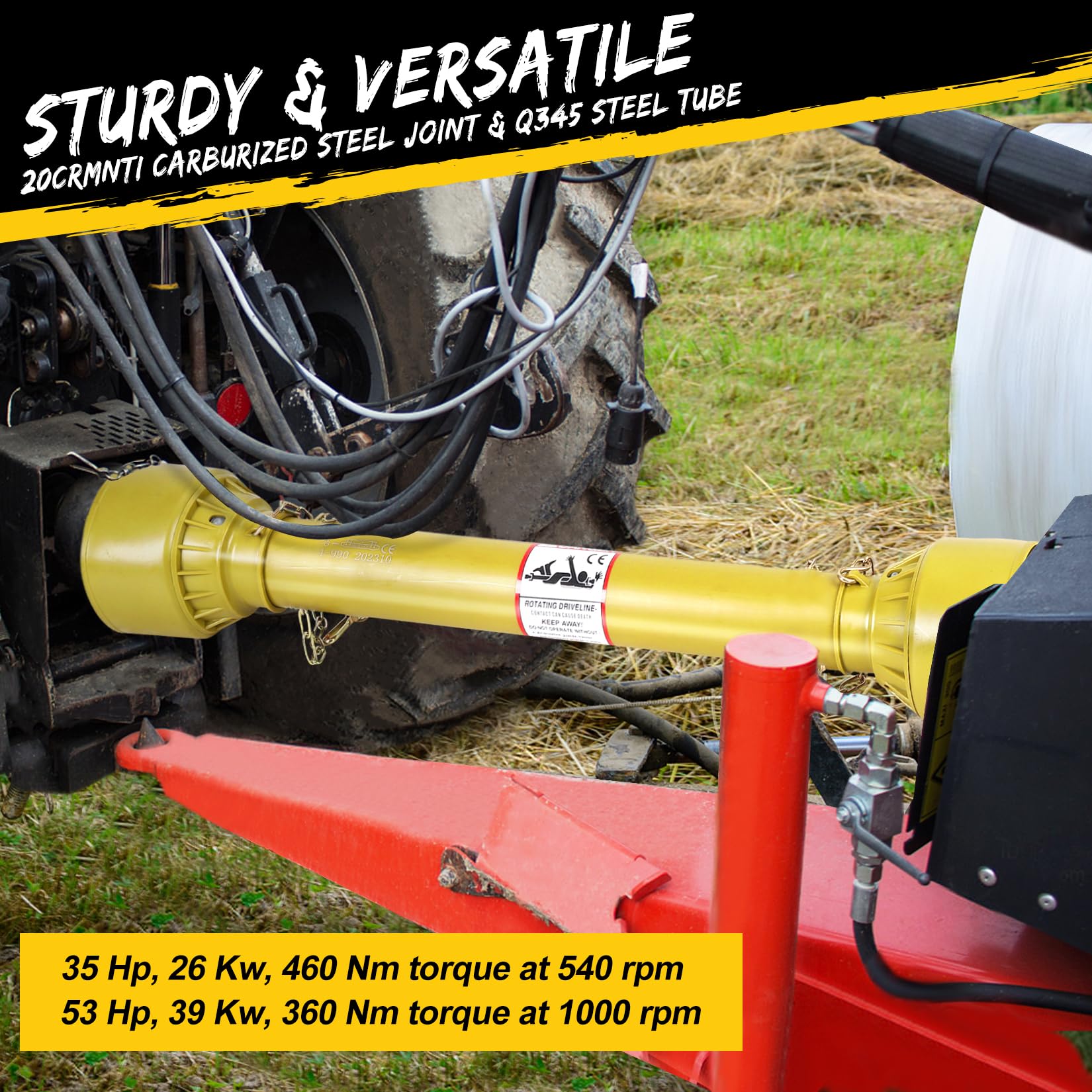

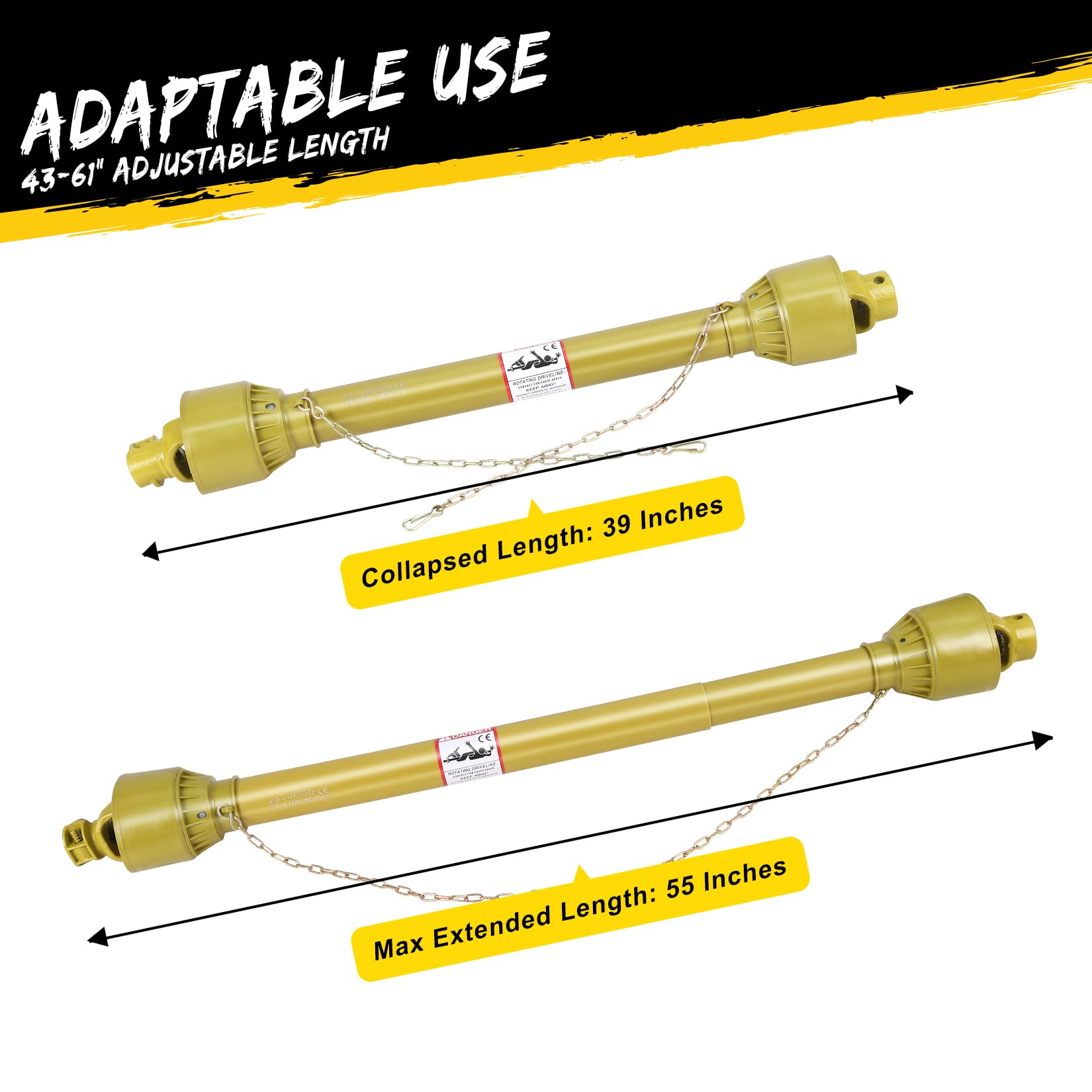

Designed with a telescoping steel tube, universal joint, and yokes, the tiller PTO shaft offers a compressed length of 39" (1000 mm) and an extended overall length of 55" (1400 mm).[reference:2] It delivers 35 HP, 26 kW, and 460 Nm torque at 540 rpm, while at 1000 rpm it features 53 HP, 39 kW, and 360 Nm torque, allowing both sides of the driveline shaft to operate at different speeds.[reference:3] This flexibility makes it ideal for finish mowers, rotary cutters, and more.
Easy Assembly & Safer Use
Easy Assembly & Safer Use
As a high-efficiency power tool, our PTO extender shaft can be easily assembled for effortless direct replacement.[reference:4] It is equipped with a security chain and a sturdy shield to eliminate potential hazards during the transmission process,[reference:5] ensuring peace of mind and safer operation in the field.
Specifications
| Brand | GARVEE |
| Item Weight | 24.3 Pounds |
| Tractor End | 6-Spline, 1-3/8 inches |
| Implement End | Round, 1-3/8 inches |
| Adjustable Length | 39" – 55" / 1000 – 1400 mm |
| Torque at 540 rpm | 35 HP / 460 Nm |
| Torque at 1000 rpm | 53 HP / 360 Nm |
| Warranty | 12 months |
